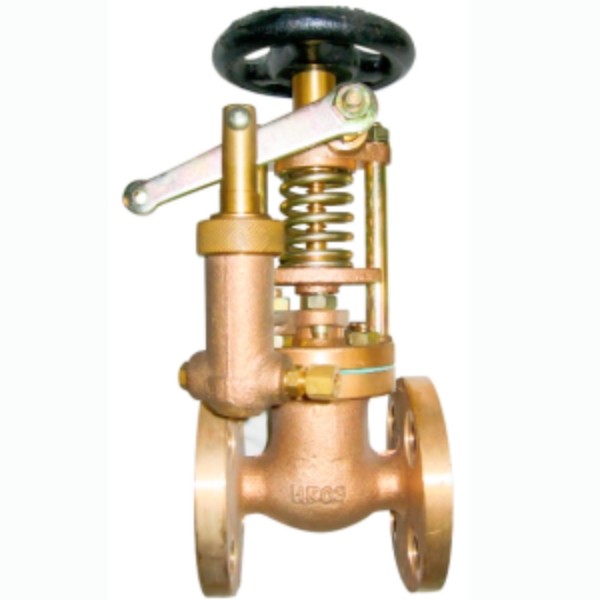

JIS F7399 5k 10K Bronze Pneumatic Operation Quick Closing Valve

JIS F7399 5k 10K Bronze Pneumatic Operation Quick Closing Valve

Short Description:

winocean is JIS F7399 5k 10K Bronze Pneumatic Operation Quick Closing Valve manufacturer ,FUEL OIL TANK EMERGENCY SHUT-OFF VALVE , IMPA874521,874522,874523,874524,874525,874526,874526,874527,874528, 874529,874530...


  • Material : Cast Bronze
  • Standards: JIS
  • Size: 5K/10K

Product Details

Product Tags

JIS F7399 5K 10K Bronze Lever Operation Quick Closing Valve


Technical Data:

Standard Nominal Pressure Nominal Diameter Applicable Medium
JIS F7399 5K 15~250 Sea Water.Fresh Water

Material of Main Parts:
Item Parts Name Material Code
1 Body Cast Bronze BC6
2 Disc Bronze BC6
3 Stem Brass H62
4 Bonnet Cast Bronze BC6
5 Handwheel Cast Iron FC200
Main Data：
Size IMPA CODE L1 D H Do Weight kgs
5K15   110 80 130 100 8.50
5K20   130 85 130 100 8.50
5K25 874521 130 95 130 120 8.50
5K32   160 115 165 120 12.70
5K40 874522 160 120 165 140 12.70
5K50 874523 210 130 335 160 20.90
5K65 874524 250 155 395 180 30.50
5K80 874525 280 180 42 180 35.40
5K100 874526 340 200 510 224 55.60
5K125 874527 410 235 570 224
5K150 874528 480 265 660
5K200 874529 570 320 780
5K250 874530 410 385 860

  • PREVIOUS：JIS F7399 5K 10K Bronze Lever Operation Quick Closing Valve
  • NEXT： JIS F7399 5K 10K CS Lever OP Fuel Oil Tank Quick Closing Valve
