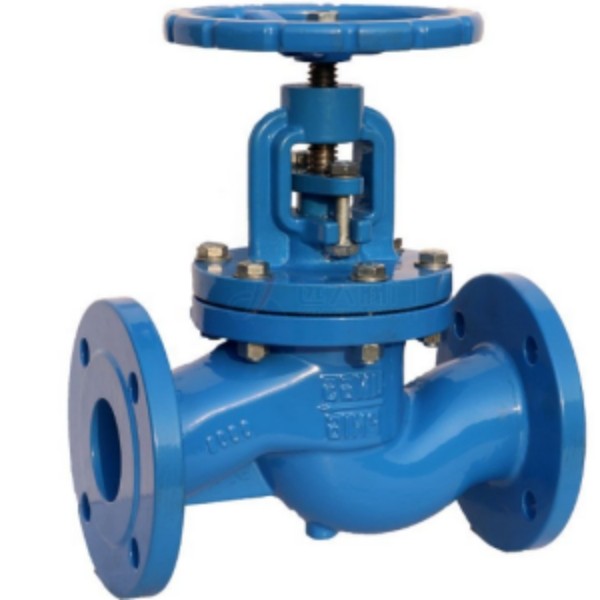

DIN Cast Steel Flanged Globe Valve PN6/10/16/25/40/64

DIN Cast Steel Flanged Globe Valve PN6/10/16/25/40/64

Short Description:

winocean is DIN Cast Steel Flanged Globe Valve PN6/10/16/25/40/64 manufacturer ,IMPA755194 755195 755196 755197 755198 755199 755301 755302 755303 755304 755305 755306 755307 755308 755309 755310 755311IMPA755199 755301 755302 755303 755304 755305 755306 755307 755308 755309 755310 755311IMPA755305 755307 755308 755309 755310 755311...


  • Material : Cast Steel
  • Standards: JIS
  • Pressure: PN6/10/16/25/40/64

Product Details

Product Tags

DIN Cast Steel Flanged Globe Valve PN6/10/16/25/40/64


Technical Data:

Standard Nominal Pressure Nominal Diameter Applicable Medium
J41H PN6.10.16.25.40.64 15~500 Oil,Gas,Water

Material of Main Parts:
Item Parts Name Material Code
1 Body Cast Steel GS-C25N
2 Disc Stainless Steel/Bronze 2Cr13/RG5
3 Stem Stainless Steel/Brass 2Cr13/CuZn35Ni
4 Bonnet Cast Steel GS-C25N
5 Handwheel Cast Iron GG25

Main Data：
Size IMPA CODE L Do
PN16 PN25/40   PN6/10/16/25/40 PN64 PN6 PN10 PN16 PN25 PN40 PN64
15A 755194 755326       80 95 95 95 95 105
20A 755195 755327       90 105 105 105 105 130
25A 755196 755328       100 115 115 115 115 140
32A 755197 755329       120 140 140 140 140 155
40A 755198 755330       130 150 150 150 150 170
50A 755199 755331       140 165 165 165 165 180
65A 755301 755332       160 185 185 185 185 205
80A 755302 755333       190 200 200 200 200 215
100A 755303 755334       210 220 220 235 235 250
125A 755304 755335       240 250 250 270 270 295
150A 755305 755336       265 285 285 300 300 345
175A           295 315 315 330 350 375
200A 755307 755338       320 340 340 360 375 415
250A 755308 755339       375 395 405 425 450 470
300A 755309 755340       440 445 460 485 515 530
350A 755310         490 505 520 555 580 600
400A 755311         540 565 580 620 660 670
450A           595 615 640 670 685
500A           645 670 715 730 755
