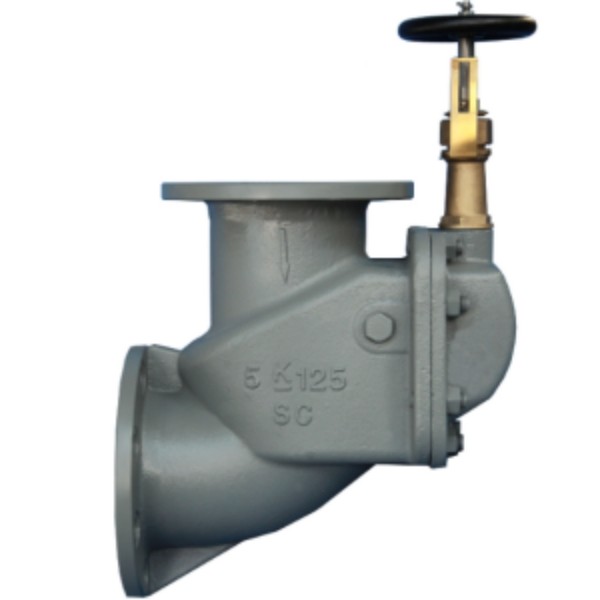

DIN Storm Valve Angle Cast Steel

DIN Storm Valve Angle Cast Steel

Short Description:

winocean is DIN Storm Valve Angle Cast Steel manufacturer ,IMPA754277 754278 754279 754280 75428 754282...


  • Material : Cast Steel
  • Standards: DIN
  • Pressure: PN10

Product Details

Product Tags

DIN Storm Valve Angle Cast Steel


IMPA754277 754278 754279 754280 75428 754282


Technical Data:

Standard Nominal Pressure Nominal Diameter Applicable Medium
DIN PN10.16 50~150 Oil,Gas,Water

Material of Main Parts:
Item Parts Name Material Code
1 Body Cast Steel/Bronze GS-C25N/RG5
2 Disc Stainless Steel/Bronze 2Cr13/RG5
3 Stem Stainless Steel/Brass 2Cr13/CuZn35Ni
4 Bonnet Cast Steel/Bronze GS-C25N/RG5
5 Handwheel Cast Iron GG25

Main Data：
Size Type IMPA CODE L D H Lift Height Weight kgs
PN10/PN16
50A Straight 754291 165 356 55 17.00
65A 754292 185 407 55 21.00
80A 754293 200 418 55 29.00
100A 754294 220 508 42 38.00
125A 754295 250 541 58 56.00
150A 754296 285 583 77 67.00
Size Type IMPA CODE L D H D1 Weight kgs
PN10/PN16
50A Angle 754277 165 210 200 12.00
65A 754278 185 220 220 14.00
80A 754279 200 233 250 18.00
100A 754280 220 255 285 27.00
125A 754281 250 292 315 37.00
150A 754282 285 316 340 49.00
