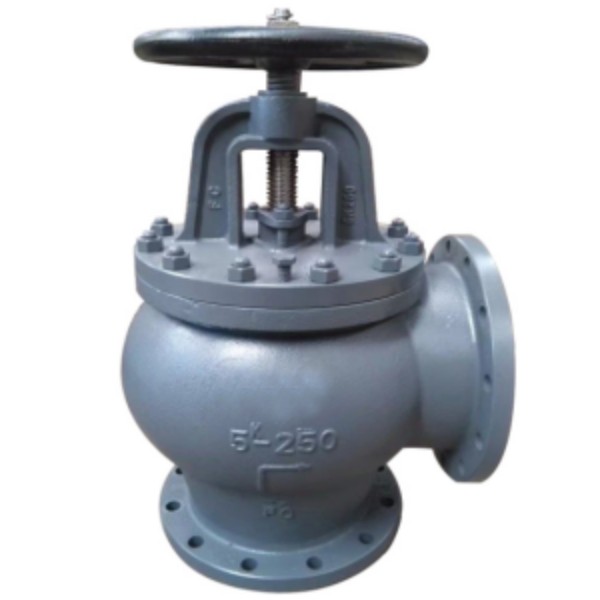

JIS F7354 5K F7376 10K F7378 16K Cast Iron Screw Down Non Return Angle Valve

JIS F7354 5K F7376 10K F7378 16K Cast Iron Screw Down Non Return Angle Valve

Short Description:

winocean is leading JIS F7354 5K F7376 10K F7378 16K Cast Iron Screw Down Non Return Angle Valve manufacturer in china ,IMPA751116 IMPA751117 IMPA751118 IMPA751119 IMPA751120 IMPA751121 IMPA751122 IMPA751123 IMPA751124 IMPA751125 IMPA751126,IMPA751141 IMPA751142 IMPA751143 IMPA751144 IMPA751145 IMPA751146 IMPA751147,IMPA751161 IMPA751162 IMPA751163 IMPA751164 IMPA751165 IMPA751166...


  • Material : Cast Iron
  • Standards: JIS
  • Size: 5K/10K/16K

Product Details

Product Tags

JIS F7354 5K  F7376 10K F7378 16K   Cast Iron Screw Down Non Return Angle Valve


Technical Data:

Standard Nominal Pressure Nominal Diameter Applicable Medium
JIS F7354 5K 50~400 Steam,Air&Gas,Oil&Flow Water

Material of Main Parts:
Item Parts Name Material Code
1 Body Cast Iron FC200
2 Disc Bronze/Stainless Steel BC6/SS304/SS420
3 Stem Brass/Stainless Steel H62/SS304/SS410
4 Bonnet Cast Iron FC200
5 Handwheel Cast Iron FC200

Main Data：
Size IMPA CODE L1 D H Do Weight kgs
5K50 751116 130 240 160 12.90
5K65 751117 155 255 180 18.20
5K80 751118 180 265 180 23.30
5K100 751119 200 310 224 33.50
5K125 751120 235 330 250 46.50
5K150 751121 265 380 280 64.00
5K200 751122 320 450 315 104.00
5K250 751123 385 540 355 175.00
5K300 751124 430 610 400 243.00
5K350 751125 480 690 500 336.00
5K400 751126 540 770 560 455.00

Technical Data:

Standard Nominal Pressure Nominal Diameter Applicable Medium
JIS F7376 10K 50~400 Steam,Air&Gas,Oil&Flow Water

Material of Main Parts:
Item Parts Name Material Code
1 Body Cast Iron FC200
2 Disc Bronze/Stainless Steel BC6/SS304/SS420
3 Stem Brass/Stainless Steel H62/SS304/SS410
4 Bonnet Cast Iron FC200
5 Handwheel Cast Iron FC200

Main Data：
Size IMPA CODE L1 D H Do Weight kgs
10K50 751141 155 255 160 18.20
10K65 751142 175 270 200 25.30
10K80 751143 185 275 200 27.50
10K100 751144 210 315 250 40.60
10K125 751145 250 360 280 69.80
10K150 751146 280 405 315 81.20
10K200 751147 330 475 355 124.00
10K250 400 570 450 211.00
10K300 445 645 500 293.00
10K350 490 710 560 386.00
10K400 560 790 630 544.00
