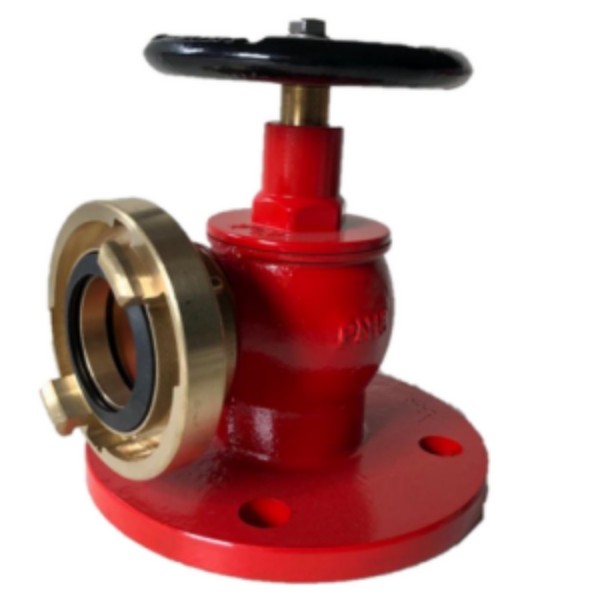

DIN Bronze Fire Hydrant Angle Globe Valve

DIN Bronze Fire Hydrant Angle Globe Valve

Short Description:

winocean is DIN Bronze Fire Hydrant Angle Globe Valve manufacturer ,IMPA756055 756056 756057 ...


  • Material : bronze
  • Standards: DIN
  • Pressure: PN10/16

Product Details

Product Tags

DIN Bronze Fire Hydrant Angle Globe Valve


IMPA756055 756056 756057


Technical Data:

Standard Nominal Pressure Nominal Diameter Applicable Medium
DIN PN10.16 40~65 Oil,Gas,Water

Material of Main Parts:
Item Parts Name Material Code
1 Body Cast Bronze DIN 1705
2 Disc Bronze DIN 1705
3 Bonnet Cast Bronze DIN 1705
4 Cap Brass DIN 17672

Main Data：
Size Type IMPA CODE L D H W Weight kgs
PN10/PN16
40A Straight     145 150 140 6.00
50A     165 160 140 6.50
65A     185 165 160 10.40
Size Type IMPA CODE L2 D H W Weight kgs
PN10/PN16
40A 90°Angle     145 193 140 4.80
50A     165 205 140 5.80
65A     185 225 160 10.40
